Turnkey Industrial Clean Room Solutions for Solar, Semiconductor Industries in Gujarat
Gujarat has become the centre of India's semiconductor push. Chip assembly and test facilities are operating or being commissioned at Sanand, a compound-semiconductor and fabrication cluster is taking shape at Dholera, and an assembly plant is coming up near Surat. Alongside this, solar cell and module capacity continues to expand across the state. Every one of these plants has the same non-negotiable requirement: air that is clean, stable and tightly controlled, with the toxic and corrosive exhaust from the process safely removed.
That requirement is what "turnkey clean room solutions" means in practice. It is not just a filtered room. It is an integrated air system, covering supply, filtration, control, process exhaust and abatement, delivered under one accountable scope. This guide explains how that system is built, what to specify, and what to check before you commit.
Why Solar and Semiconductor Plants Are Different From Other Industries
Heavy industries such as cement and steel worry about dust and stack emissions. Solar and semiconductor plants worry about both contamination going in and hazardous exhaust going out:
- Fine particles damage yield. A single particle on a wafer or cell surface can cause a defect, so the air in the process area must be controlled to a defined cleanliness class.
- Hazardous process gases. Silicon processing, etching, doping, deposition and chamber cleaning use gases such as silane, phosphine, ammonia and fluorinated compounds, along with acid vapours and solvents. These are toxic, corrosive, or both.
- High global-warming-potential emissions. Some fluorinated gases have a very high warming impact, so treating them is both a safety and a sustainability matter.
- Tight environmental conditions. Temperature, humidity and pressure must hold within narrow bands, or process results drift.
As production scales up, handling the exhaust stream becomes as important as the manufacturing technology itself.
What "Turnkey" Actually Covers
A genuine turnkey clean room package is one point of responsibility from concept to handover and beyond:
- Requirements definition. Cleanliness class, process layout, heat load, process gases and exhaust volumes are fixed up front.
- Design and engineering. Airflow pattern, pressure cascade, air change rates and equipment selection are designed as one system.
- Air handling and HVAC. Make-up air units, air handling units, cooling and dehumidification, fans and controls.
- Filtration. Pre-filters, fine filters and HEPA or ULPA terminal filters, plus chemical filtration where airborne molecular contamination matters.
- Process exhaust and abatement. Collection of tool exhaust, scrubbers or filters matched to each gas, exhaust fans and stacks.
- Installation and commissioning. Erection, air balancing, leak testing of filters, and integration with building controls.
- Qualification and handover. Particle count and airflow verification against the target cleanliness class before production starts.
- Operation and maintenance. AMC support so the room keeps performing after handover.
Where parts of the scope sit with different parties, such as the room envelope or utilities, responsibility for the interfaces must be defined in writing. Most clean room delays and disputes arise at those interfaces.
Clean Room Air and Exhaust Process Flow
Step 1: Fresh air intake. Outside air is drawn in to replace what is exhausted and to keep the room under positive pressure. In Gujarat's hot, humid and dusty climate, this air carries a heavy load of moisture and dust.
Step 2: Make-up air treatment. The make-up air unit filters, cools and dehumidifies the incoming air so that humidity control does not overload the main system.
Step 3: AHU supply fan. The air handling unit mixes treated fresh air with recirculated return air and drives it toward the room.
Step 4: HEPA or ULPA filtration. Terminal filters in the ceiling remove particles from the air at the point of entry to the room. This is the stage that sets the cleanliness class.
Step 5: The clean room. Air flows through the process area, carrying particles away from the work surface, while temperature, humidity and room pressure are held to specification.
Step 6: Return air. Most of the air is returned to the air handling unit and recirculated. This is far more economical than conditioning fresh air continuously.
Step 7: Process exhaust. Air containing acid, toxic or solvent vapours is drawn from the process tools through a dedicated exhaust header. It is kept separate from the recirculating air.
Step 8: Abatement. Scrubbers or filters treat the exhaust, matched to the specific gases present.
Step 9: Exhaust fan and stack. An exhaust fan draws the stream through the abatement equipment, and the treated air is discharged within permitted limits.
Key Design Parameters
These are the parameters that determine whether a clean room performs, and they should be agreed before equipment is quoted:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Process Exhaust and Abatement: Where Batliboi's Core Range Fits
The exhaust side is where solar and semiconductor plants need specialist treatment, and it is where Batliboi Environmental Engineering Group's air pollution control range applies directly:
- Wet scrubbing for acid vapours and soluble gases. Venturi Scrubbers absorb soluble gases such as HCl, HF and SO₂ and remove fine particulate in the same unit. For the selection logic, see our guide on choosing the right scrubber for a chemical plant, which applies equally to acid exhaust from etching and cleaning.
- Dust collection for silicon and material handling. Cartridge Filters and Pulsejet Bag Filters control fine silicon dust from cutting, grinding and powder handling.
- Fans and blowers. Centrifugal Fans & Blowers provide the airflow for ventilation and exhaust, which is where much of a clean room's running cost sits.

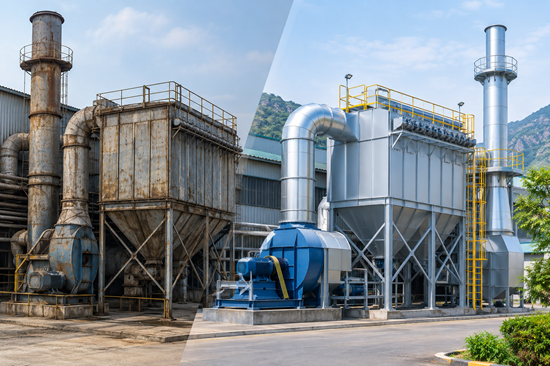

- SOx and NOx reduction systems and retrofit solutions for plants upgrading existing exhaust treatment.
One honest technical point matters here. Wet scrubbers are the right tool for acid and soluble gases, but some process gases, including certain fluorinated compounds and pyrophoric gases like silane, are normally treated at the tool by dedicated point-of-use abatement before the exhaust reaches a central scrubber. A sound design assigns each gas to the right stage rather than expecting one scrubber to handle everything.
Solar vs Semiconductor: Different Needs, Same Discipline
Semiconductor fabs and OSAT plants. Wafer fabrication demands the strictest cleanliness classes, unidirectional airflow, and chemical filtration. Assembly and test areas are less demanding but still need tight control of particles, static and humidity. Process exhaust is chemically diverse and needs careful segregation.
Solar cell and module plants. Cell lines involve texturing, diffusion, deposition and metallisation, with acid and solvent exhaust and fine silicon dust. Module assembly areas typically need lower cleanliness classes, but humidity and particle control still affect quality and yield.
In both cases the pattern is the same: zone the facility by need, then engineer air supply and exhaust for each zone instead of over-building the whole plant to the strictest standard.
Gujarat-Specific Considerations
- Climate load. Hot, humid and dusty conditions increase the work done by make-up air treatment. Strong pre-filtration and dehumidification capacity matter more here than in cooler regions.
- Energy cost. Fan power is the largest running cost of a clean room. Efficient fans, variable speed drives and right-sized air change rates pay back quickly.
- Regulatory consent. Exhaust emissions fall under Gujarat Pollution Control Board consent conditions, so abatement design should be documented against those limits from the start.
- Utilities and water. Wet scrubbers need a reliable water supply and an effluent route. Confirm availability at the site, particularly in newer industrial zones.
- Supply chain advantage. The Dahej chemical cluster supplies a large share of the specialty chemicals used in semiconductor manufacturing, which keeps chemical supply close to Gujarat plants. It also means exhaust streams from chemical-intensive processes should be planned for early.
- Speed. New facilities work to tight commissioning schedules, so a single accountable turnkey partner reduces coordination risk.
Buyer's Checklist: 8 Questions Before You Choose a Partner
- Is the scope defined end to end, from air supply through exhaust abatement, with interfaces written down?
- Is cleanliness specified per zone against ISO 14644-1, rather than one blanket class?
- Are air change rates and fan power justified, with running cost shown, not just capital cost?
- Is process exhaust segregated from recirculating air, with each gas assigned to a suitable abatement stage?
- Is the exhaust design documented against GPCB consent limits?
- How will performance be verified? Ask for particle counts, airflow and filter leak testing before handover.
- Can the partner support operation after handover through AMC, spares and trained service staff?
- Does the partner manufacture its own fans and abatement equipment, or buy everything in?
Common Mistakes
- Specifying the strictest cleanliness class for the whole plant instead of by zone
- Treating the exhaust system as an afterthought once the room design is finished
- Ignoring humid, dusty ambient conditions when sizing make-up air treatment
- Mixing process exhaust with recirculating air, or letting exhaust and make-up air fall out of balance
- Expecting a single scrubber to handle every process gas
- Skipping post-installation filter leak tests and airflow verification
- Choosing on capital cost and discovering the energy bill later
Batliboi EEG: Clean Room, HVAC and Air Pollution Control Support
Batliboi Environmental Engineering Group brings together industrial HVAC and clean room support, a full air pollution control range for process exhaust, and industrial fans and blowers, with AMC support for HVAC systems across Maharashtra and Gujarat. As part of the Batliboi group, founded in 1892, with in-house manufacturing, 500+ successful pollution control projects, and execution across design, engineering, fabrication, supply, installation and commissioning, the group is set up to take responsibility for the air and exhaust systems that solar and semiconductor plants depend on.
Explore the Solar & Semiconductor Industry page and the Industrial HVAC page, or get in touch to discuss your plant's requirements in Gujarat.
Frequently Asked Questions
1. What does a turnkey clean room solution include? A turnkey package covers requirements definition, design, HVAC and air handling, HEPA or ULPA filtration, process exhaust and abatement, installation, commissioning, performance verification and ongoing maintenance, all under one accountable scope.
2. What cleanliness class do semiconductor and solar plants need? It depends on the area. Wafer fabrication needs the strictest ISO 14644-1 classes, while assembly, test and solar module areas typically use less demanding classes. The class should be specified zone by zone against the process, not applied across the whole building.
3. What is the difference between HEPA and ULPA filters? Both are high-efficiency terminal filters that remove very fine particles from supply air. ULPA filters capture an even higher proportion of the smallest particles and are used where the cleanliness class demands it. Either type must be leak-tested after installation.
4. Why is process exhaust a bigger issue for semiconductor and solar plants? The processes use toxic and corrosive gases such as silane, phosphine, ammonia and fluorinated compounds, along with acid vapours and solvents. These must be collected and treated before release, and some need treatment at the tool before reaching a central scrubber.
5. Can one scrubber handle all the exhaust gases? Usually not. Wet scrubbers handle acid and soluble gases well, but certain fluorinated and pyrophoric gases are normally treated by dedicated point-of-use abatement first. A sound design assigns each gas to the right stage.
6. Why does Gujarat's climate matter for clean room design? Hot, humid and dusty ambient air increases the load on make-up air treatment, mainly dehumidification and pre-filtration. Undersizing this stage is a common cause of unstable humidity and filter overload.
7. How can clean room running costs be reduced? Fan power is the largest share of running cost. Zoning by cleanliness class, right-sizing air change rates, using efficient fans with variable speed drives, and recirculating return air all reduce energy use.
8. Who provides turnkey HVAC and clean room support for solar and semiconductor plants in Gujarat? Batliboi Environmental Engineering Group offers industrial HVAC and clean room solutions with AMC support across Maharashtra and Gujarat, alongside air pollution control and industrial fans for process exhaust. Contact Batliboi EEG to discuss your plant's requirements.
